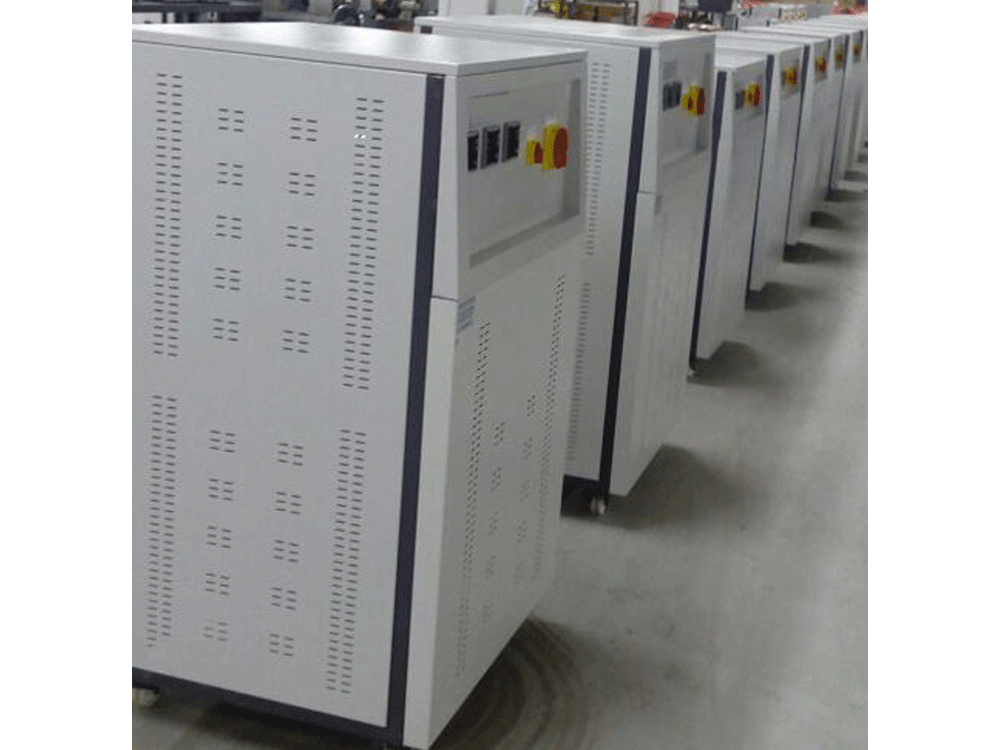

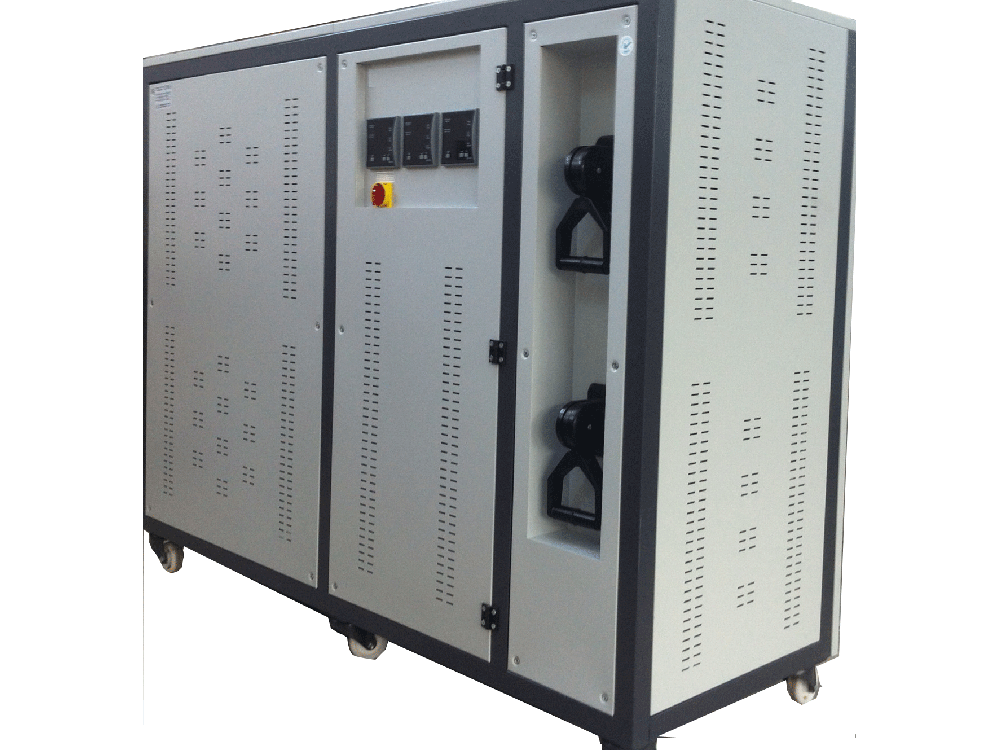

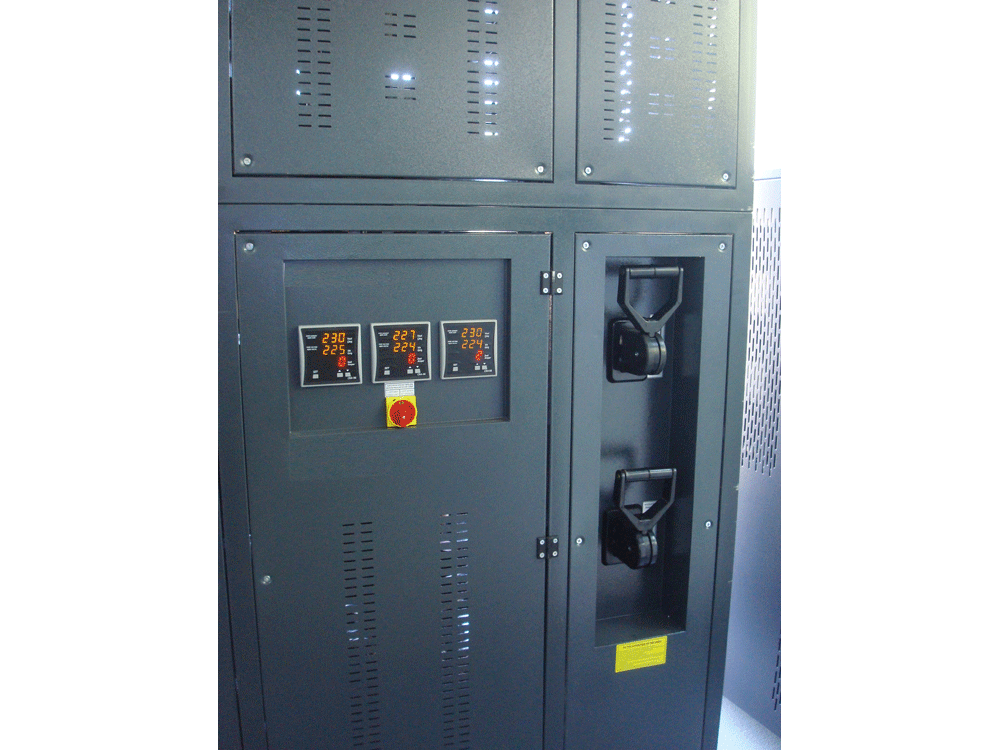

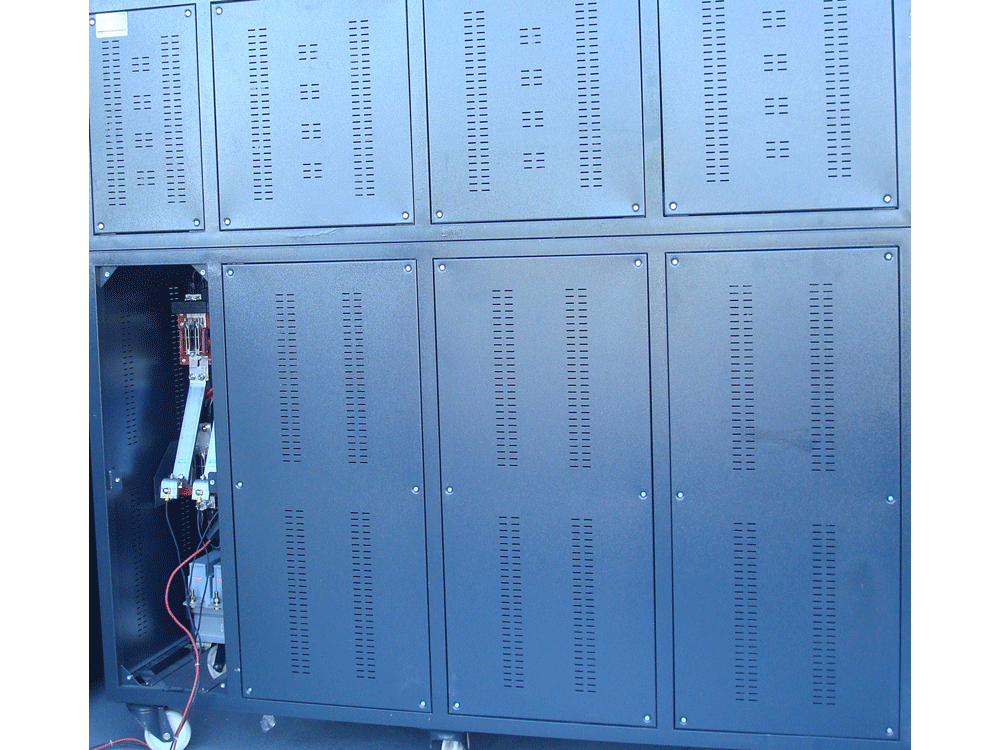

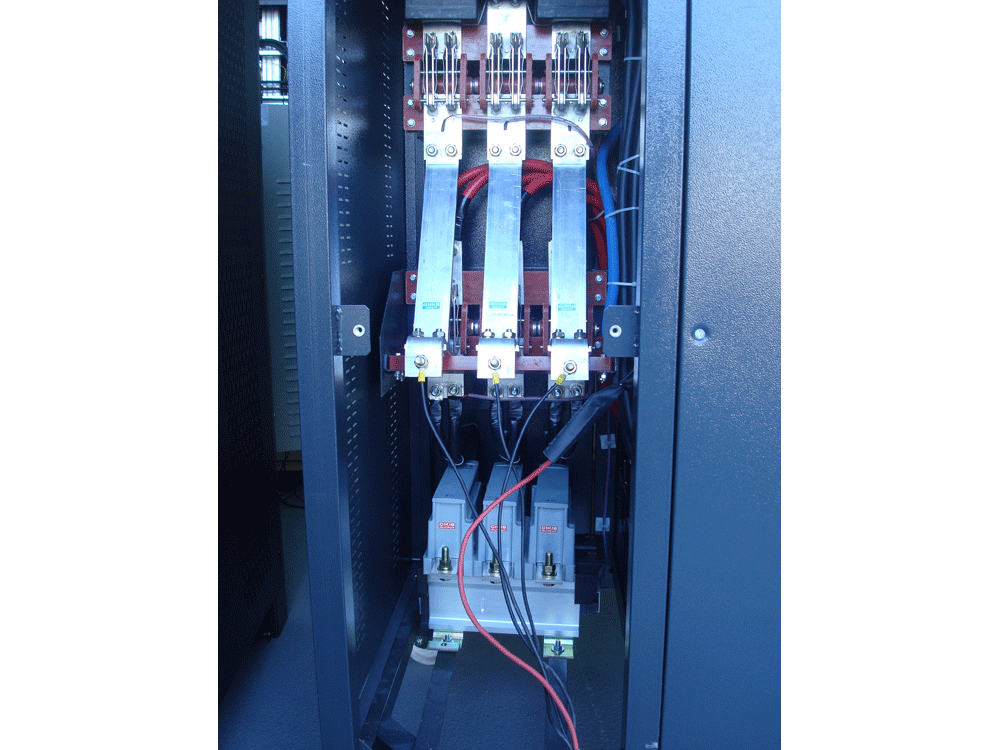

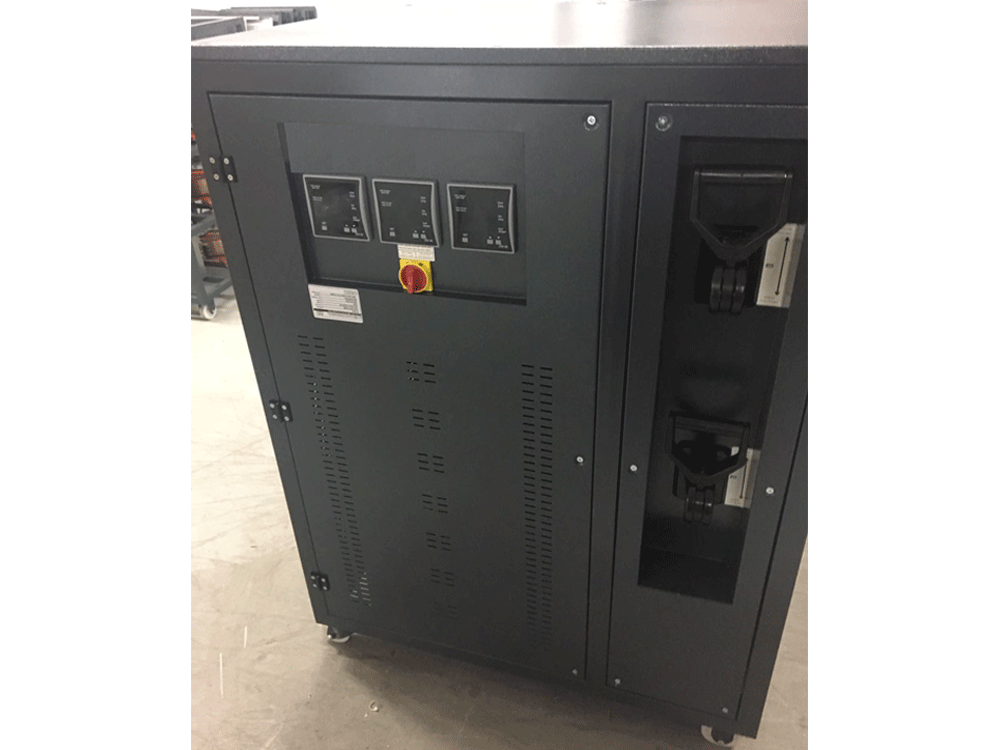

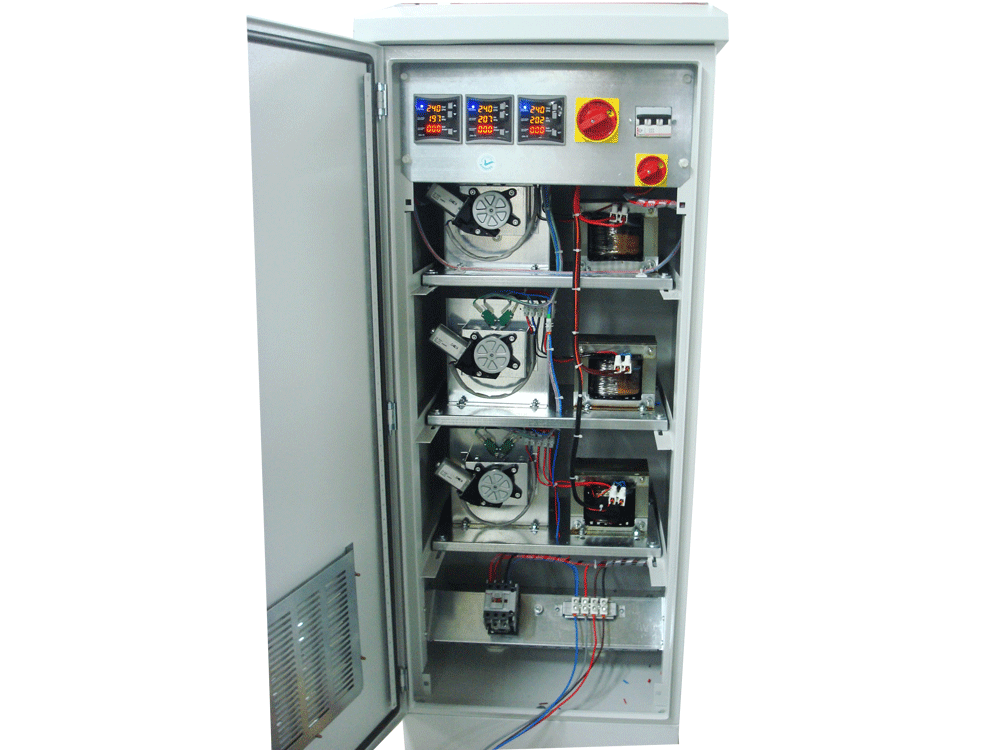

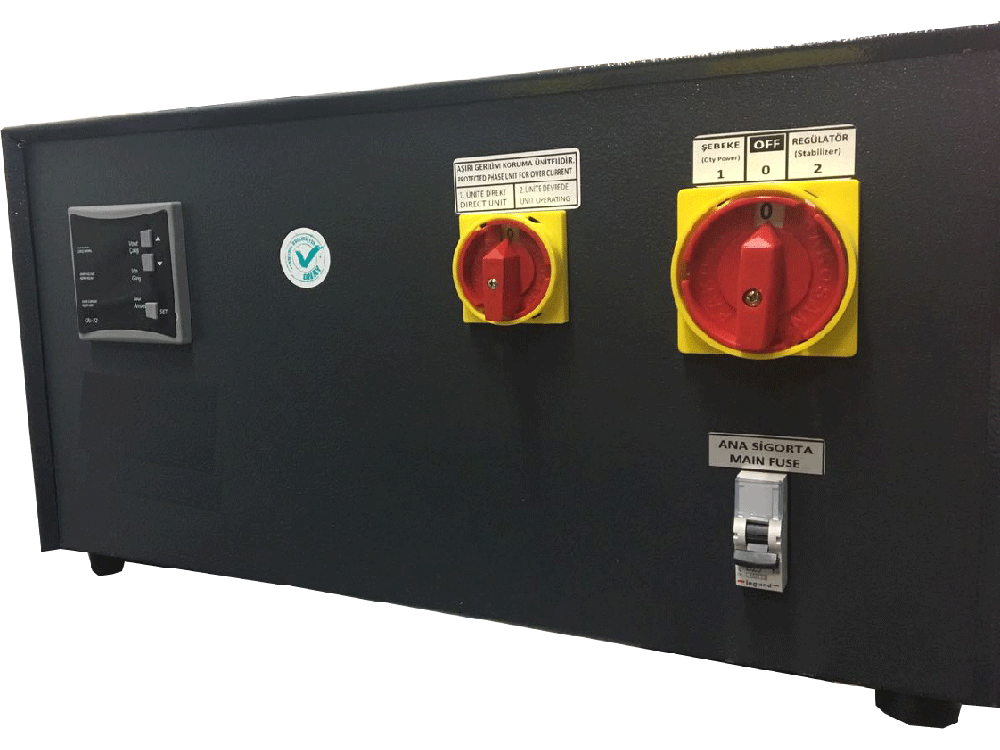

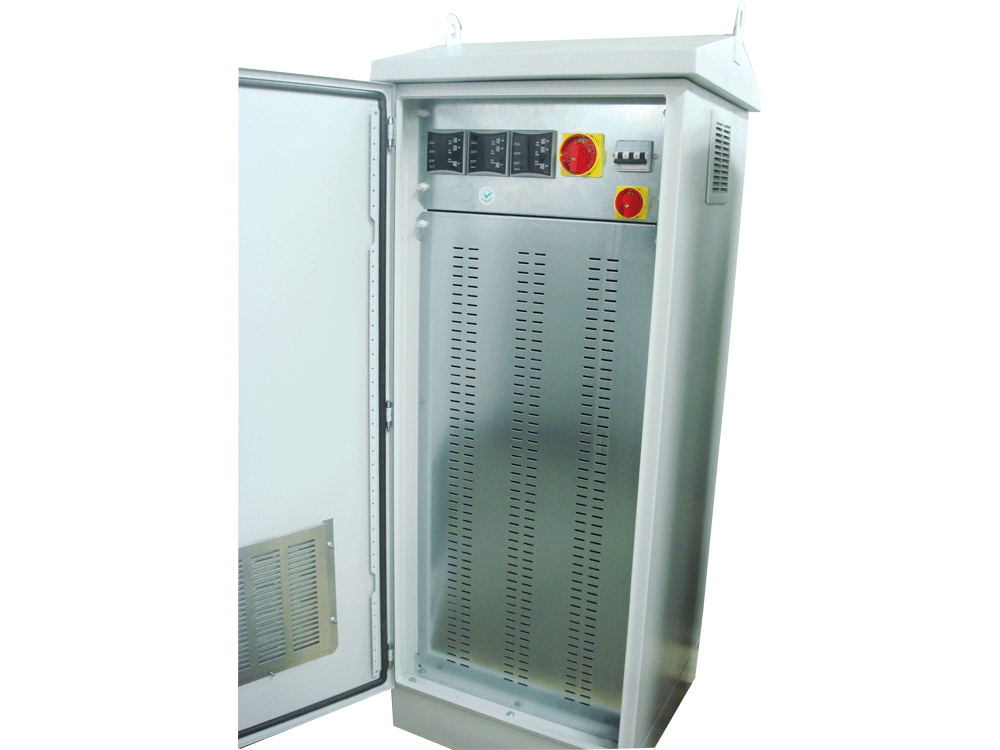

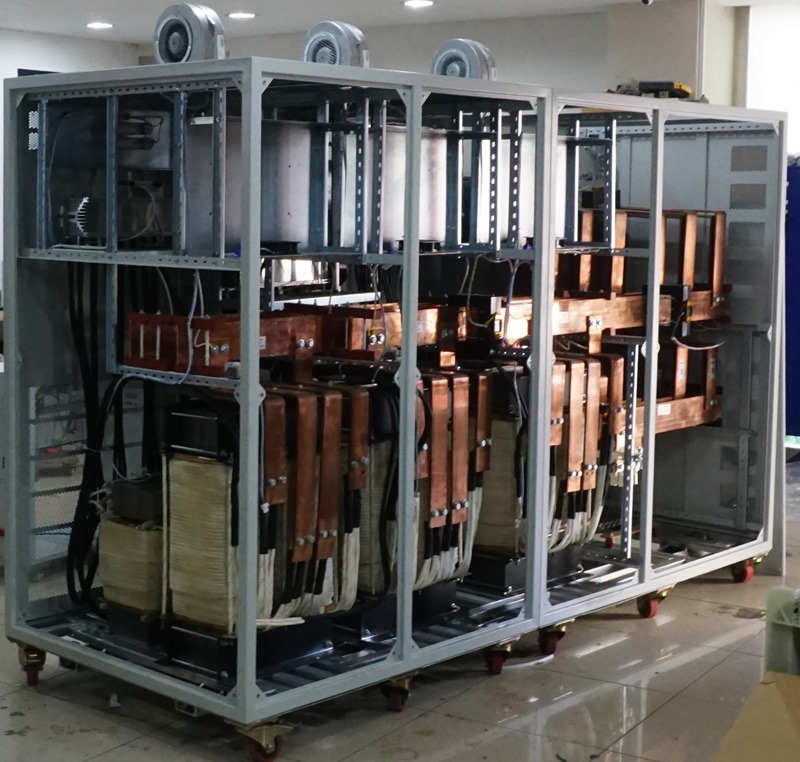

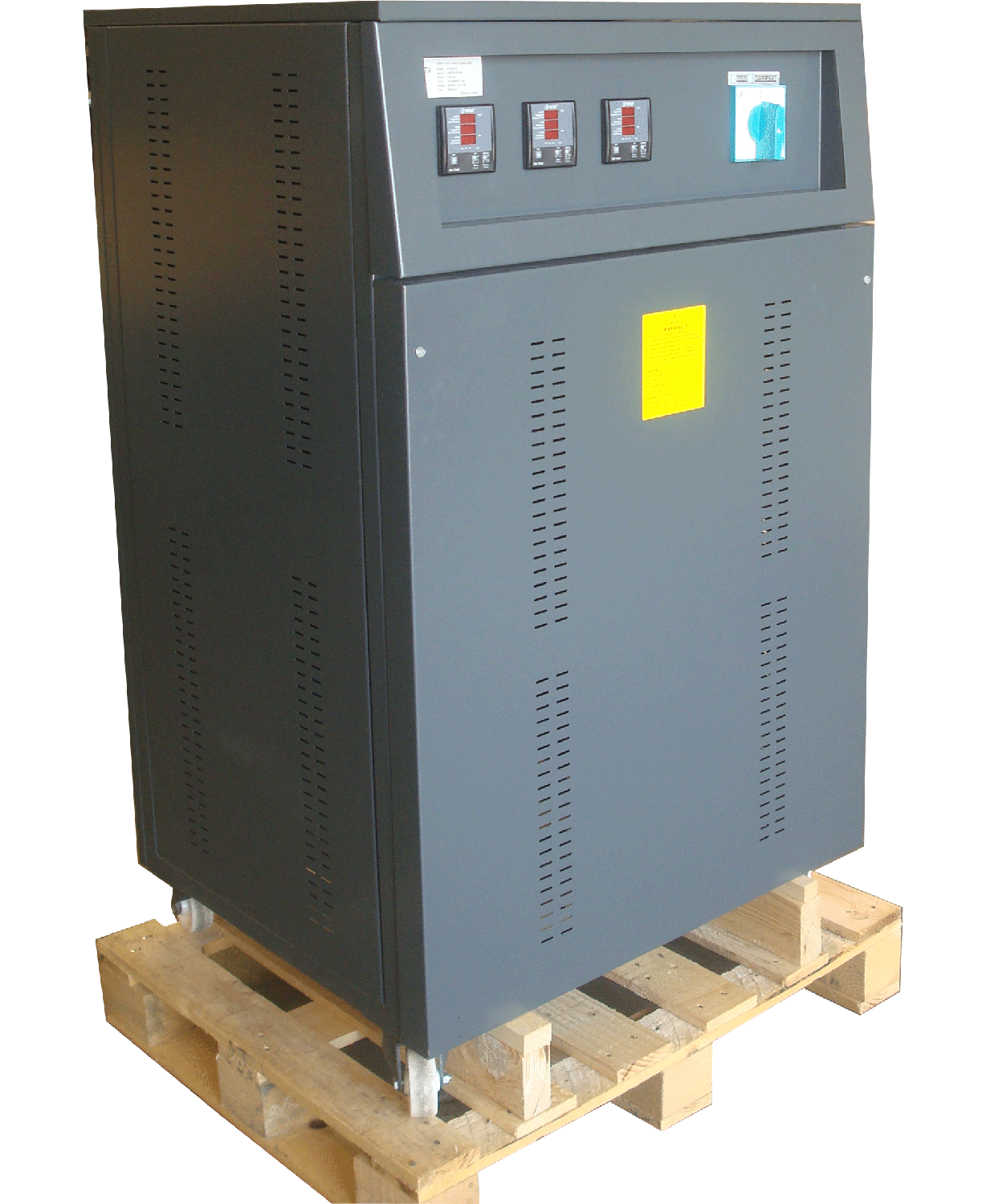

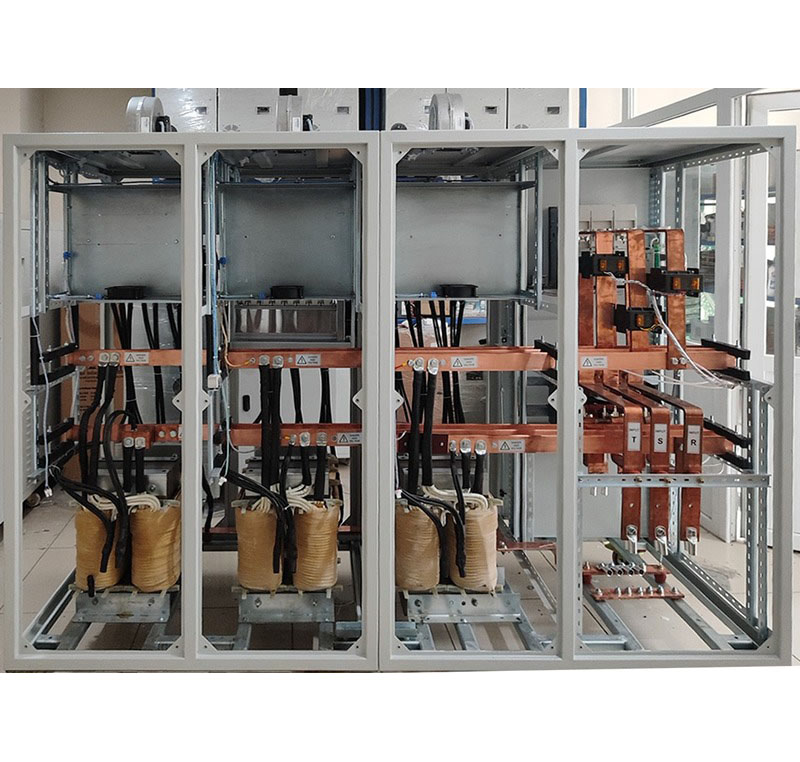

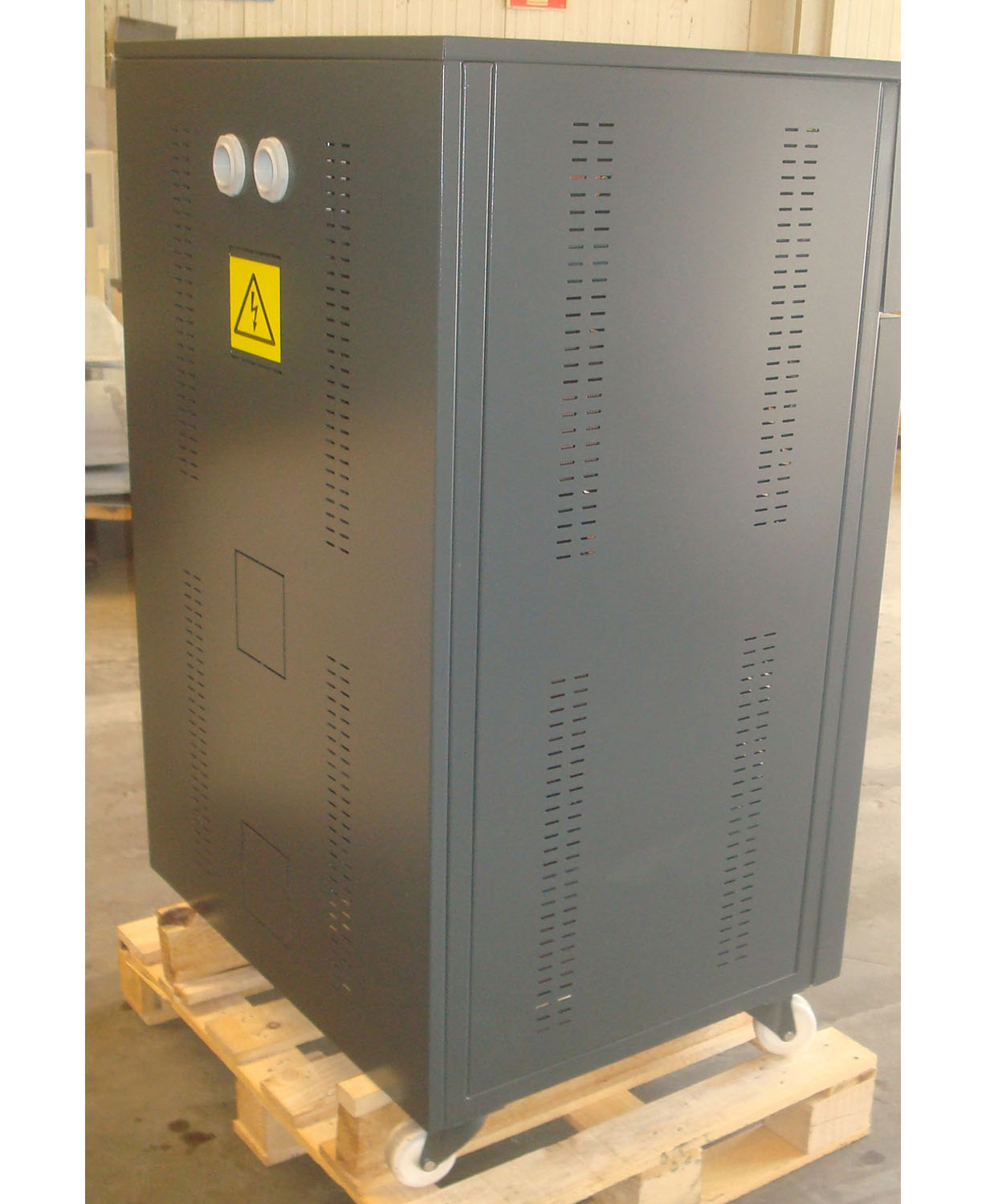

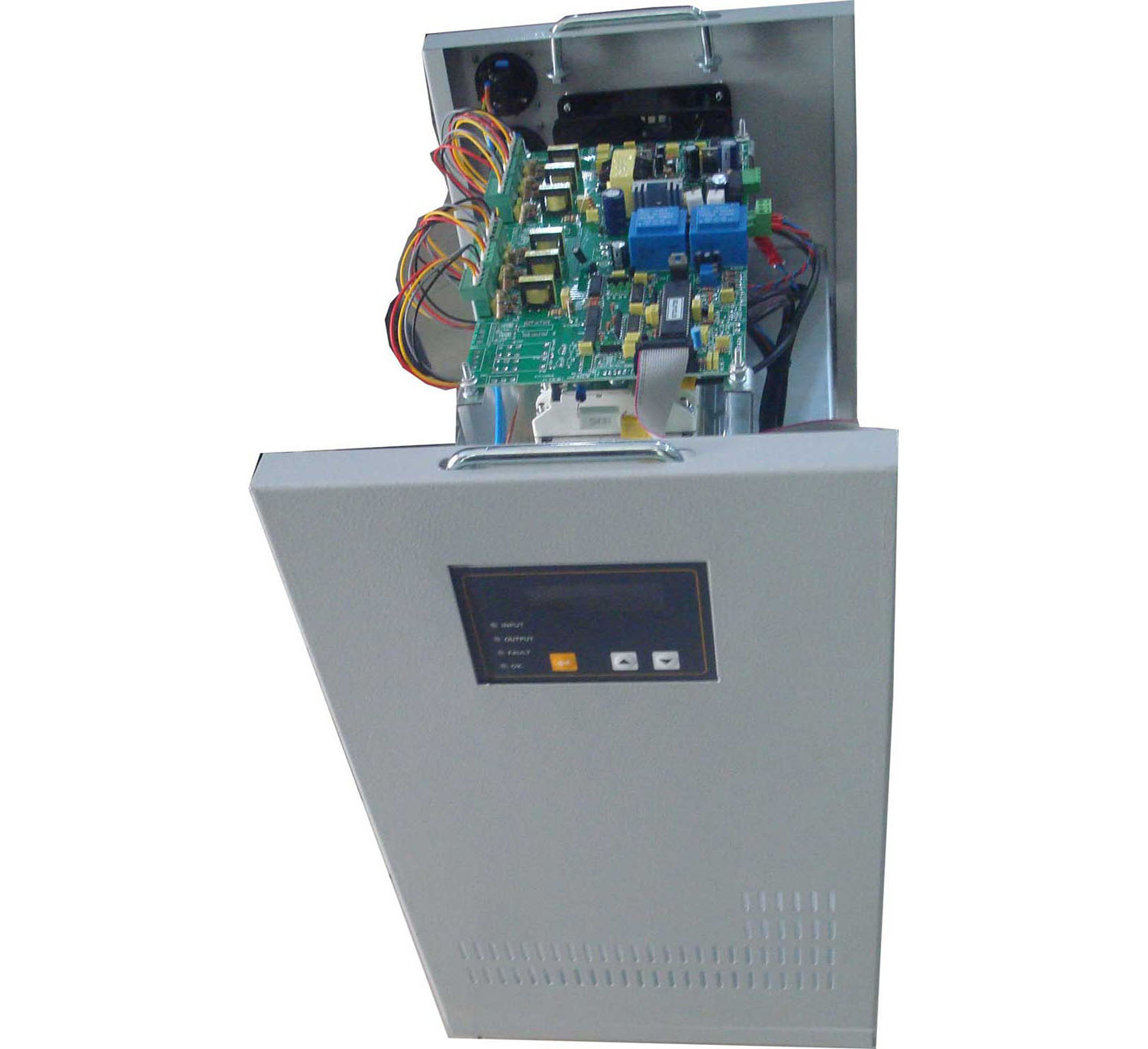

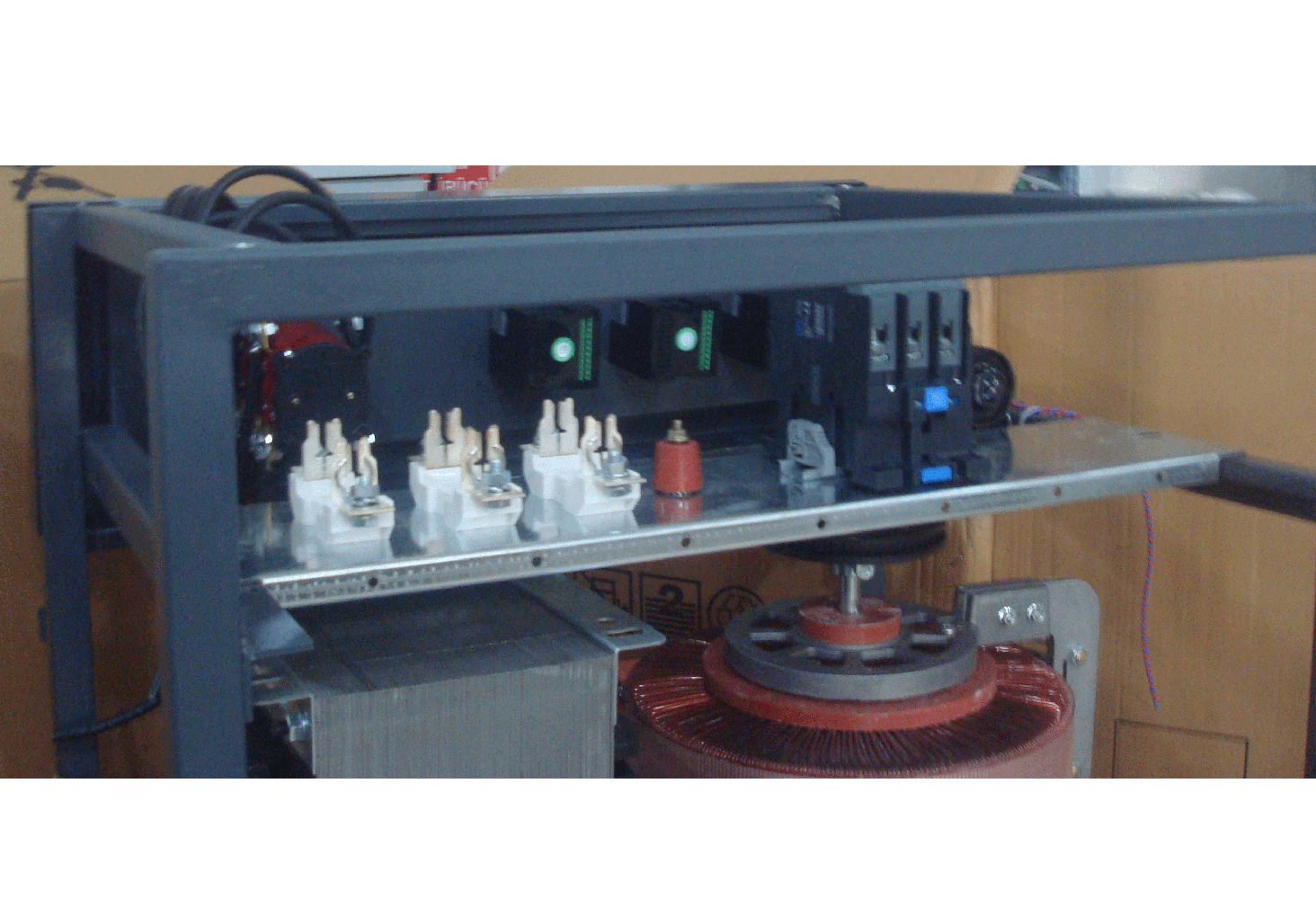

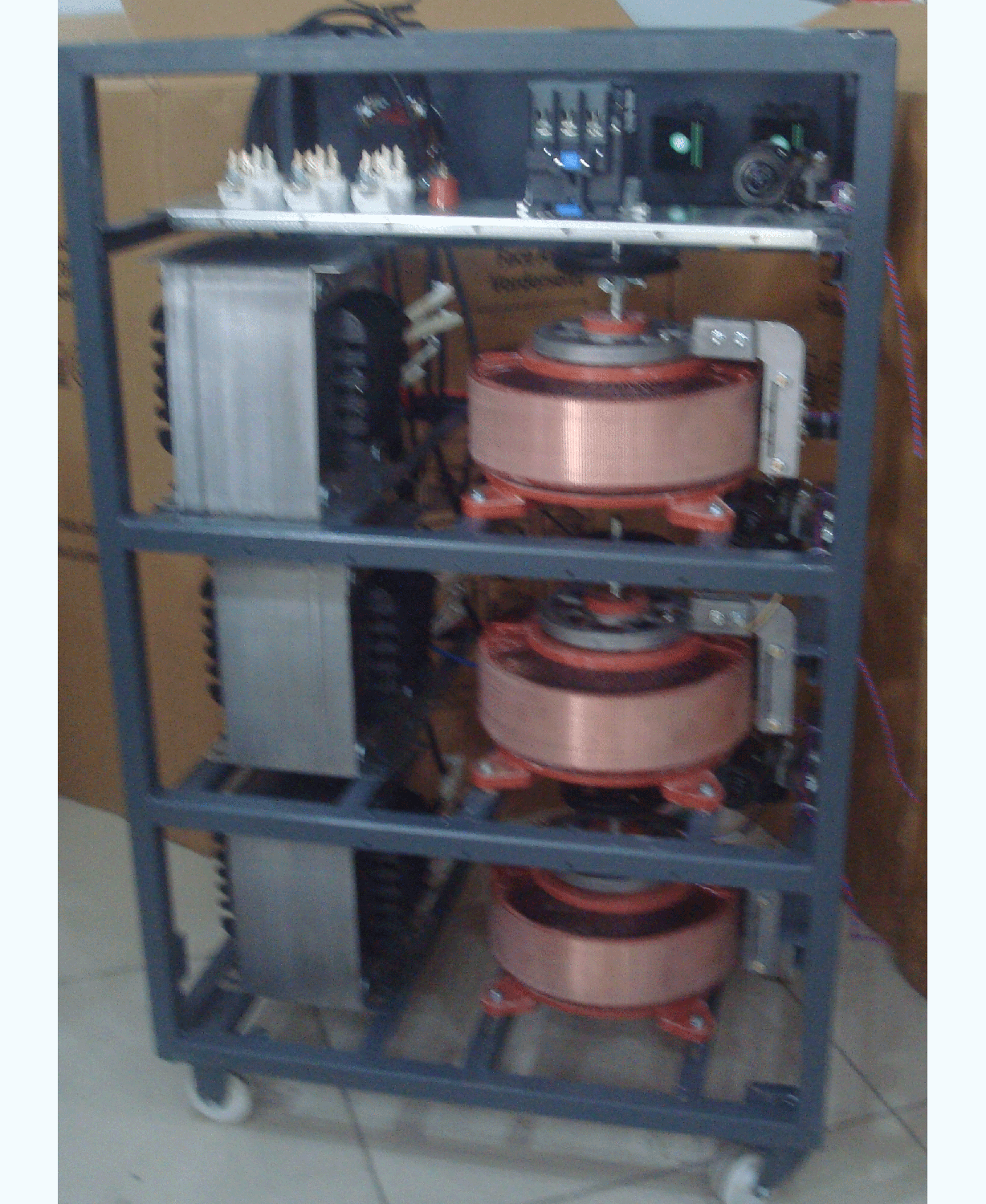

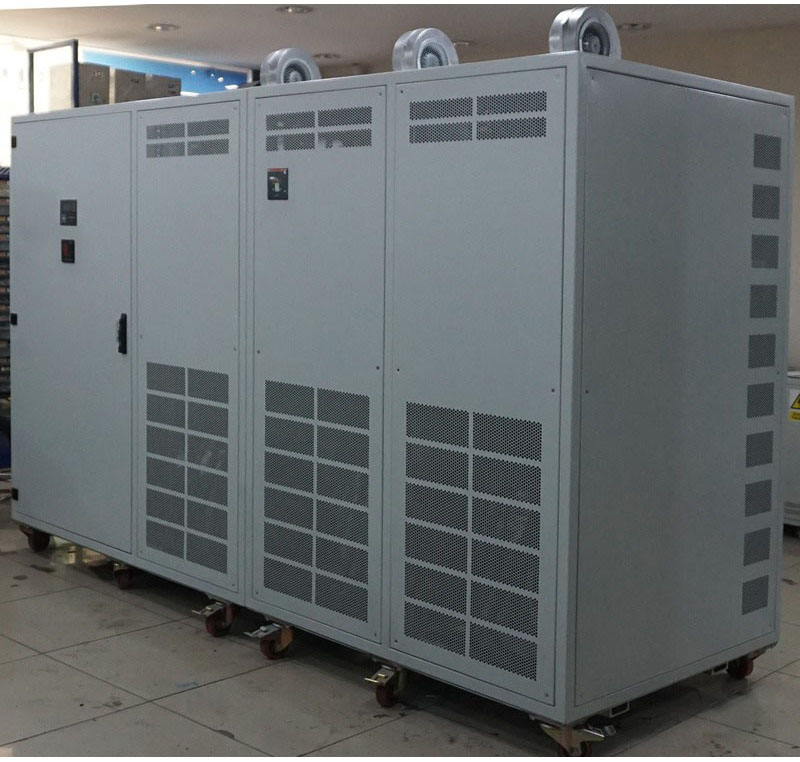

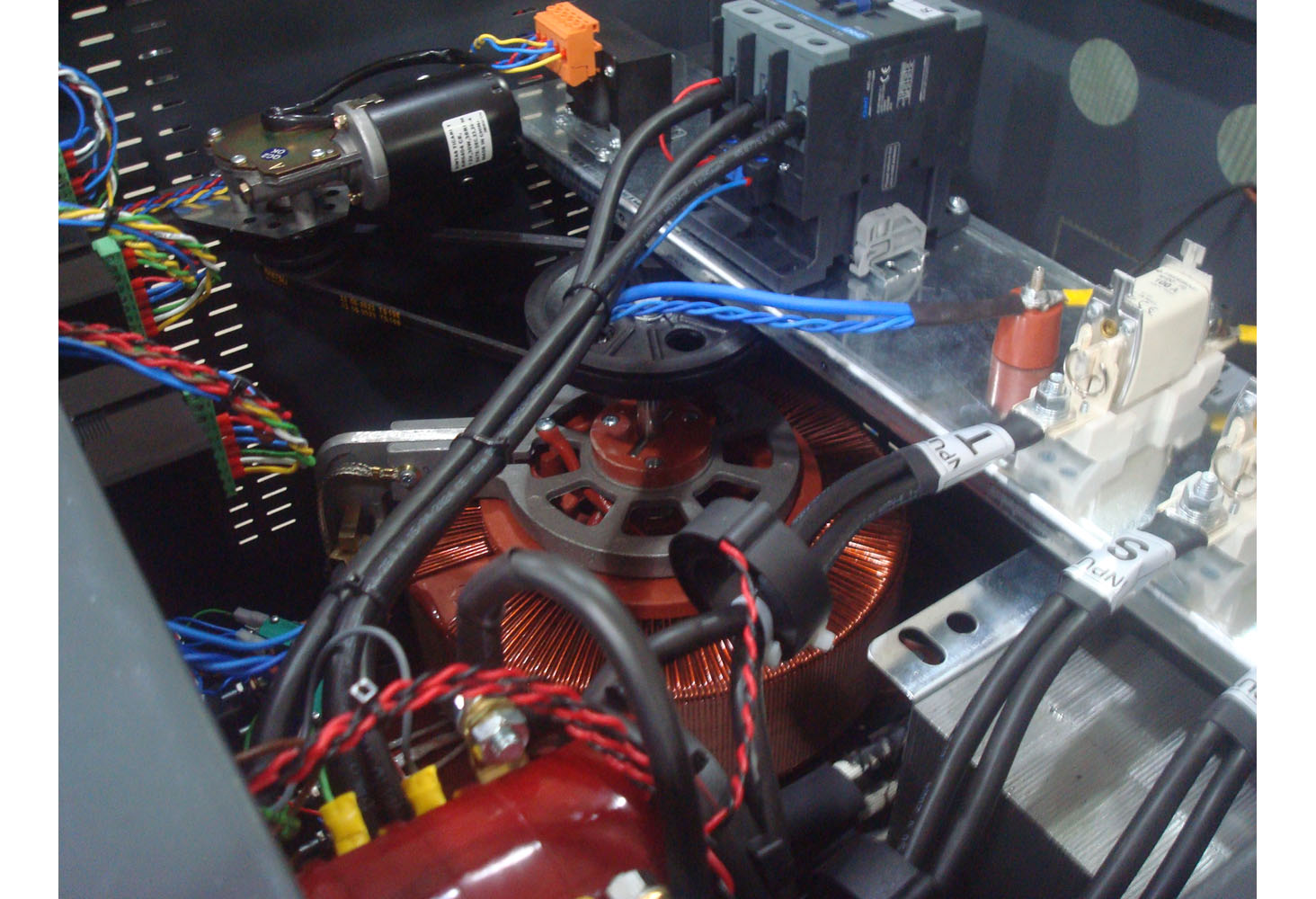

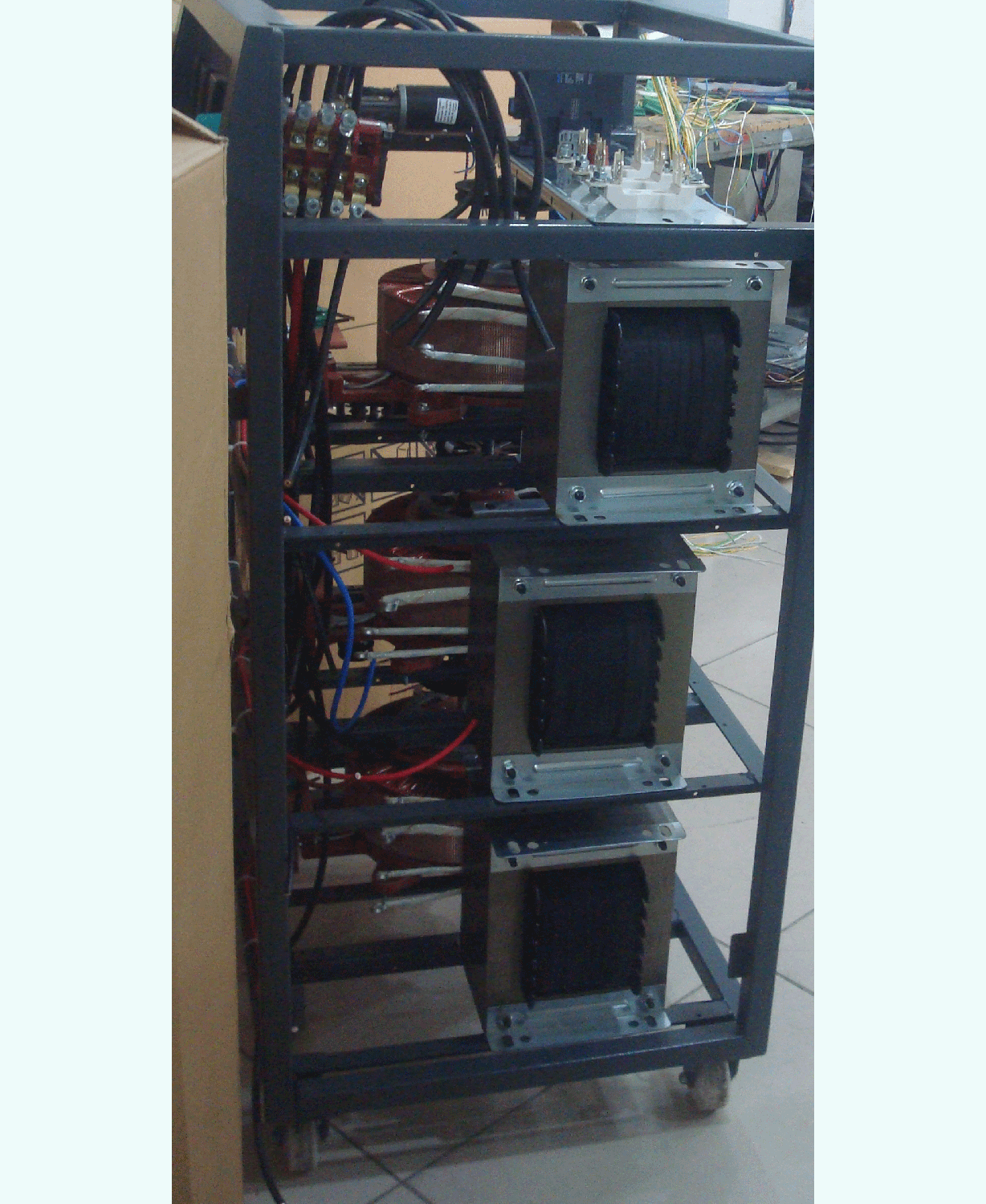

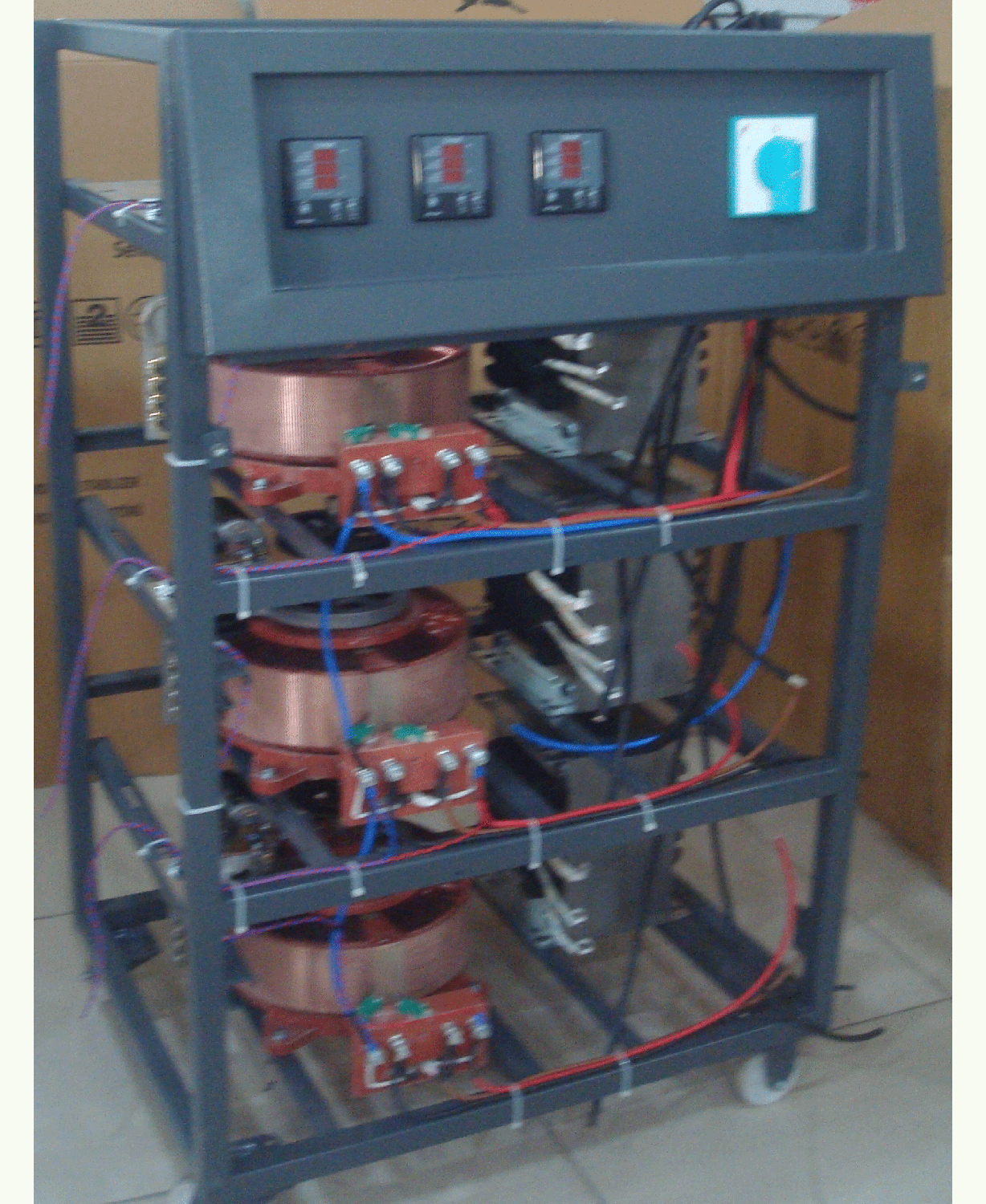

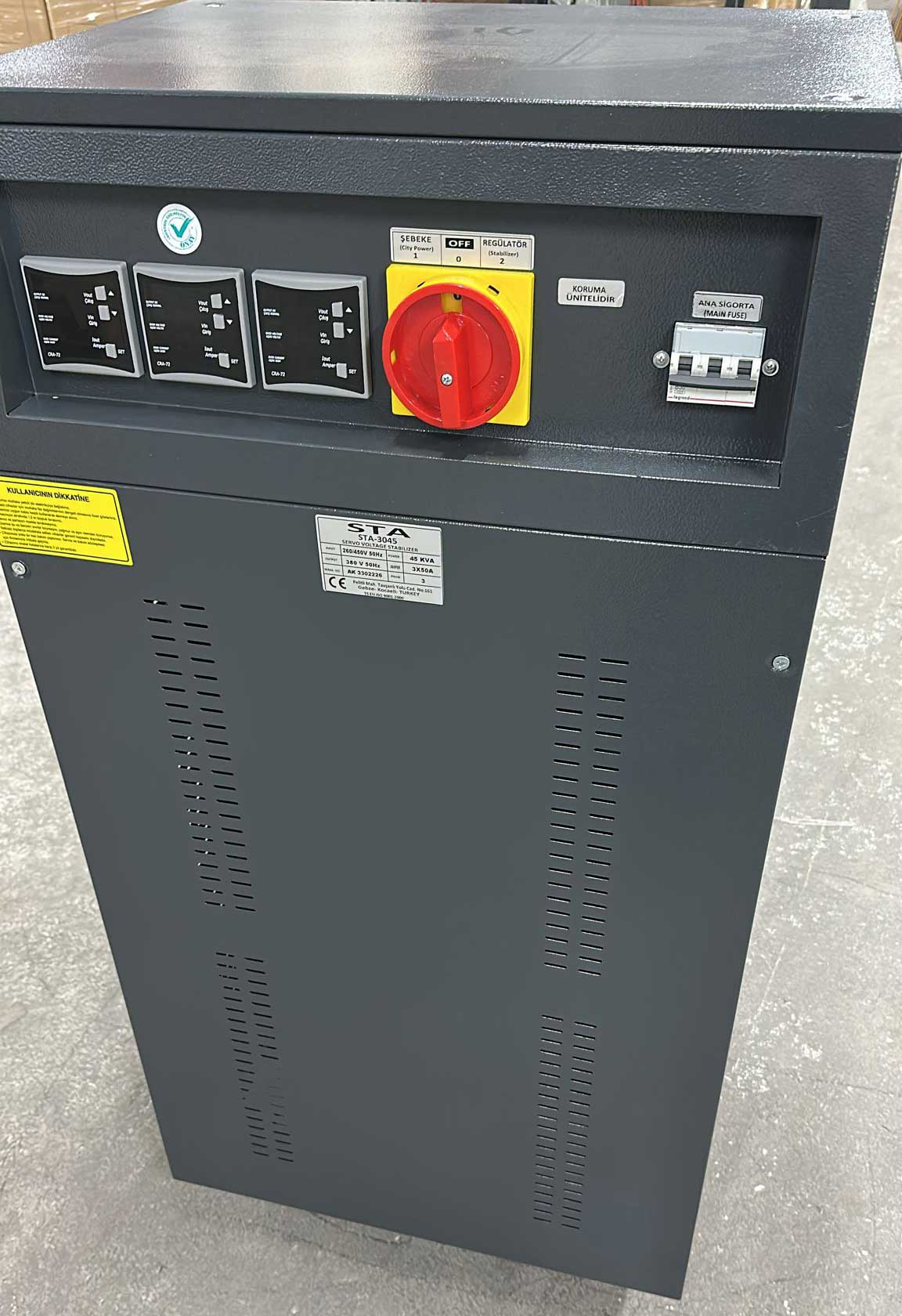

Servo Voltage Stabilizer
|
SINGLE PHASE |
THREE PHASE |
|
|
Control Method |
Servo Electronic Controlled Microprocessor |
|
|
Input Range |
150-250Vac |
275-450Vac |
|
Output Voltage |
230Vac |
400Vac |
|
Correction speed |
60-80 V/Sec |
40-60 V/Sec |
|
Power Range |
1-50 Kva |
10-2100 Kva |
|

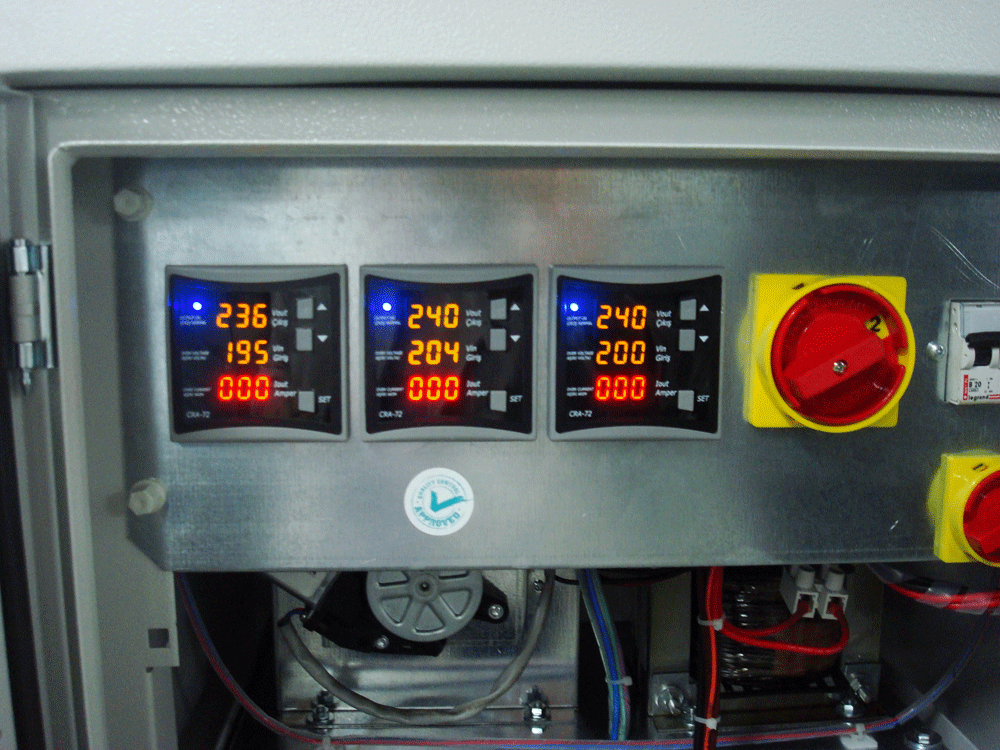

Indicator |
Input and output voltage indicators |
|
|
Efficiency |
>95% |
>95% |
|
Operating Temperature |
Between 10-40 C degree |
|
|
Protection Unit |
Optional |
|
|
Model |
Power Kva |
H (mm) |
W (mm) |
D (mm) |
Weights |
|
STA3011 |
10,5 |
1000 |
500 |
450 |
130 |
|
STA3015 |
15 |
1000 |
500 |
450 |
140 |
|
STA3023 |
22,5 |
1000 |
500 |
450 |
175 |
|
STA3030 |
30 |
1250 |
650 |
450 |
210 |
|
STA3045 |
45 |
1250 |
650 |
450 |
245 |
|
STA3060 |
60 |
1400 |
850 |
700 |
350 |
|
STA3075 |
75 |
1400 |
850 |
700 |
450 |
|
STA3100 |
100 |
1400 |
850 |
700 |
550 |
|
STA3120 |
120 |
1600 |
1000 |
800 |
750 |
|
STA3150 |
150 |
1600 |
1000 |
800 |
950 |
|
STA3200 |
200 |
1500 |
2100 |
800 |
1300 |
|
STA3250 |
250 |
1500 |
2100 |
800 |
1500 |
|
STA3300 |
300 |
1500 |
2100 |
800 |
1850 |
|
STA3400 |
400 |
2200 |
2200 |
900 |
2500 |
|
STA3500 |
500 |
2200 |
2200 |
900 |
3000 |
|
STA3600 |
500 |
2200 |
2200 |
900 |
3500 |
|
STA3800 |
800 |
1750 |
3900 |
1350 |
4000 |
