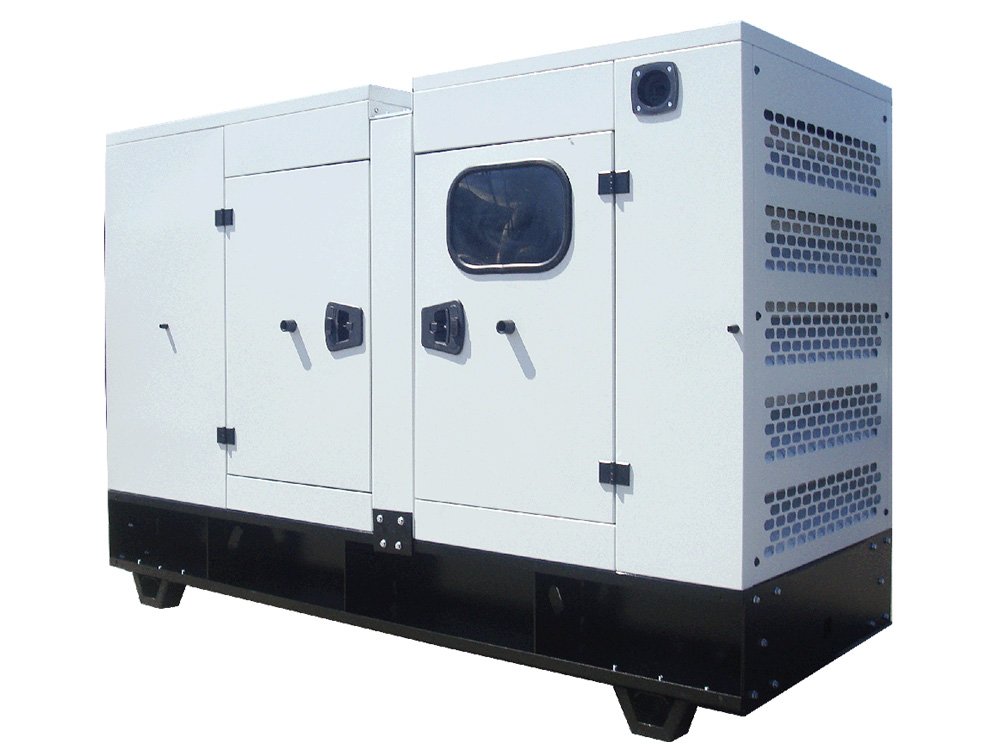

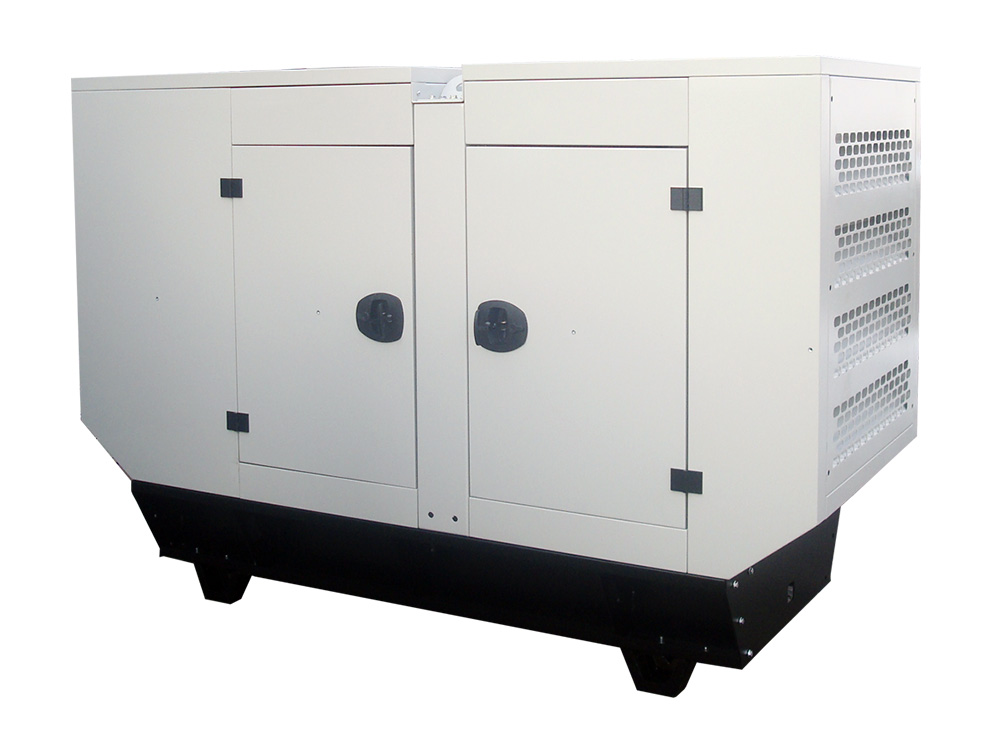

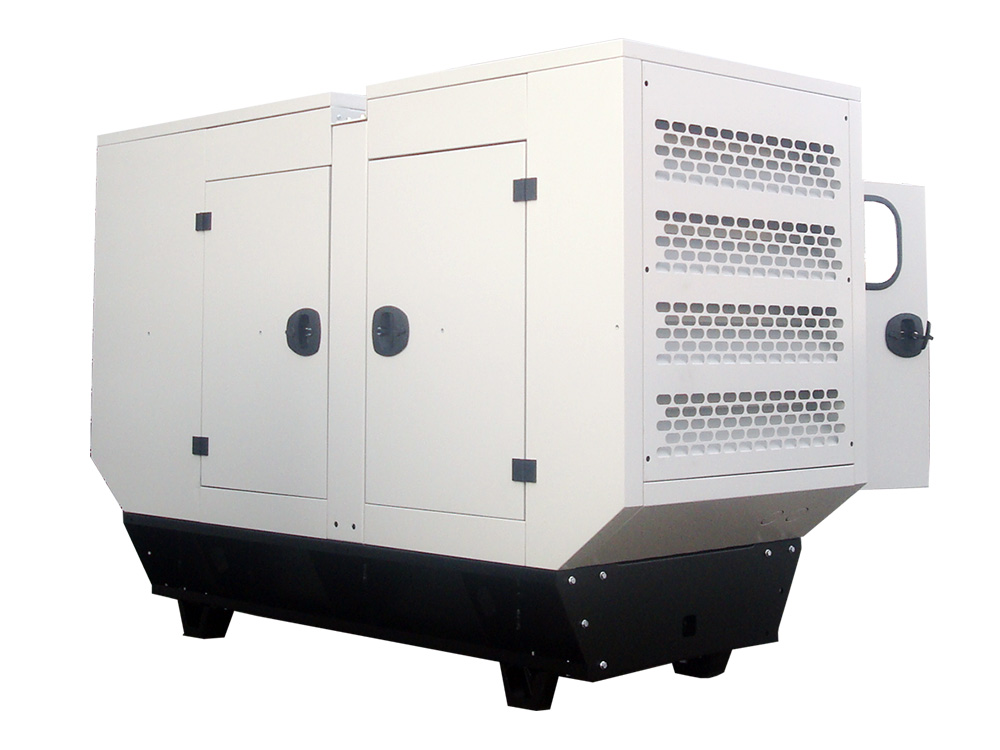

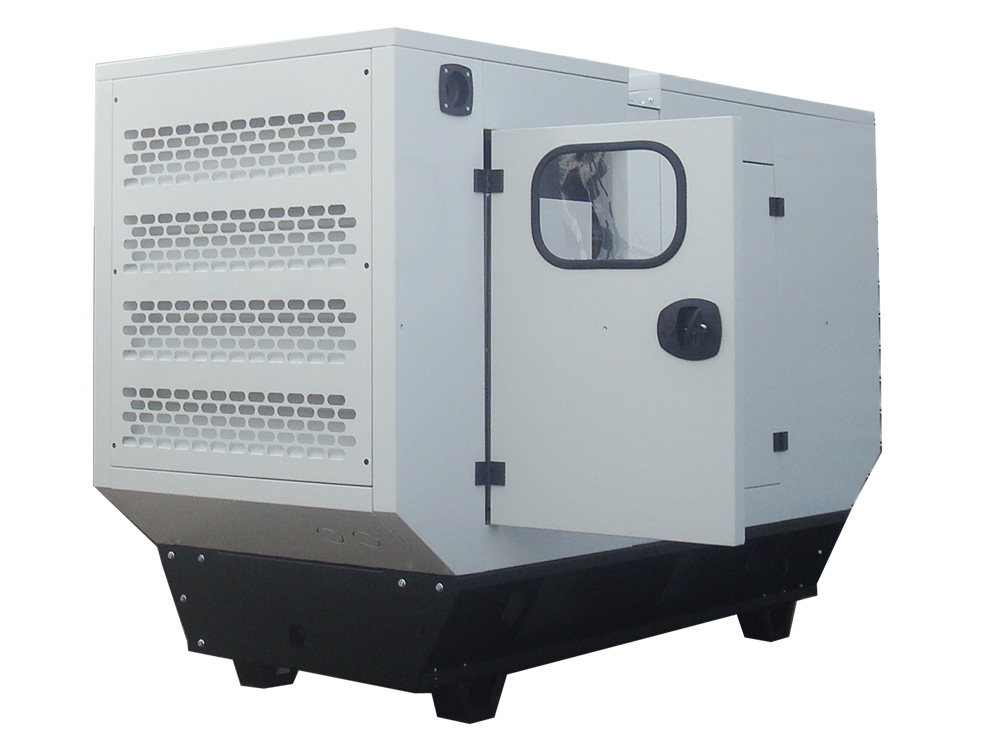

Generator Cabins (Canopy) & Chasis (Fuel Tank)

Products
1. High quality galvanized metal body (Wall thickness 1.2mm, 1,5mm,2mm or 3mm)
2. Corrosion and Rust resistant
3. Painting is done with nano-technological electrostatic powder paint technique.

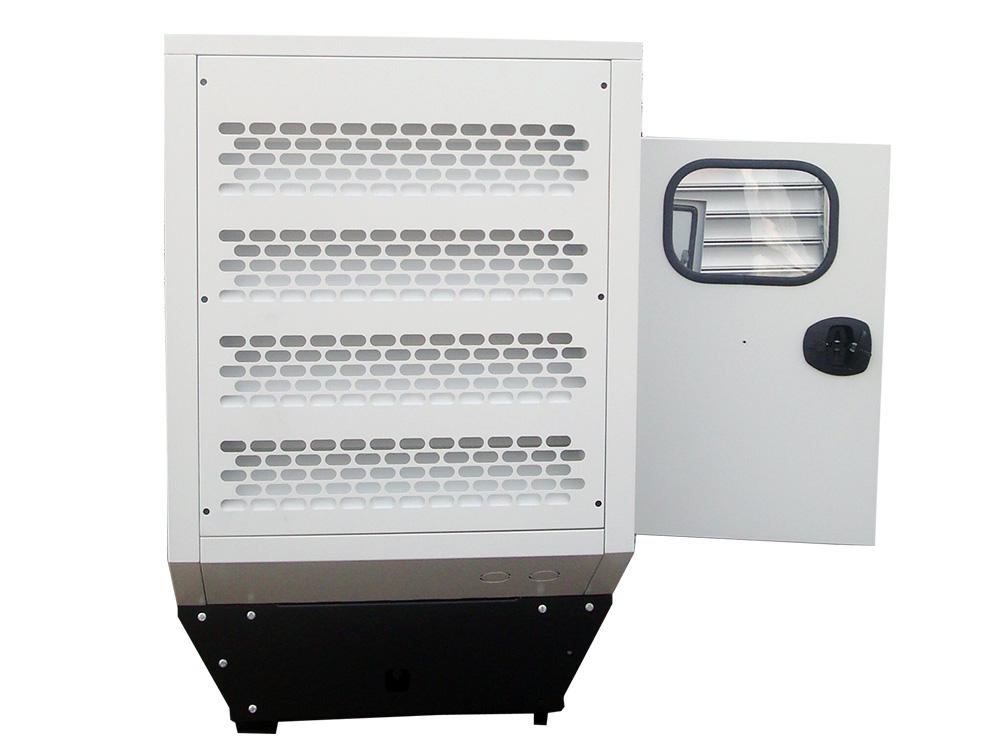

4. All of our generator enclosures are designed to allow the maximum required airflow so that the engine does not overheat.

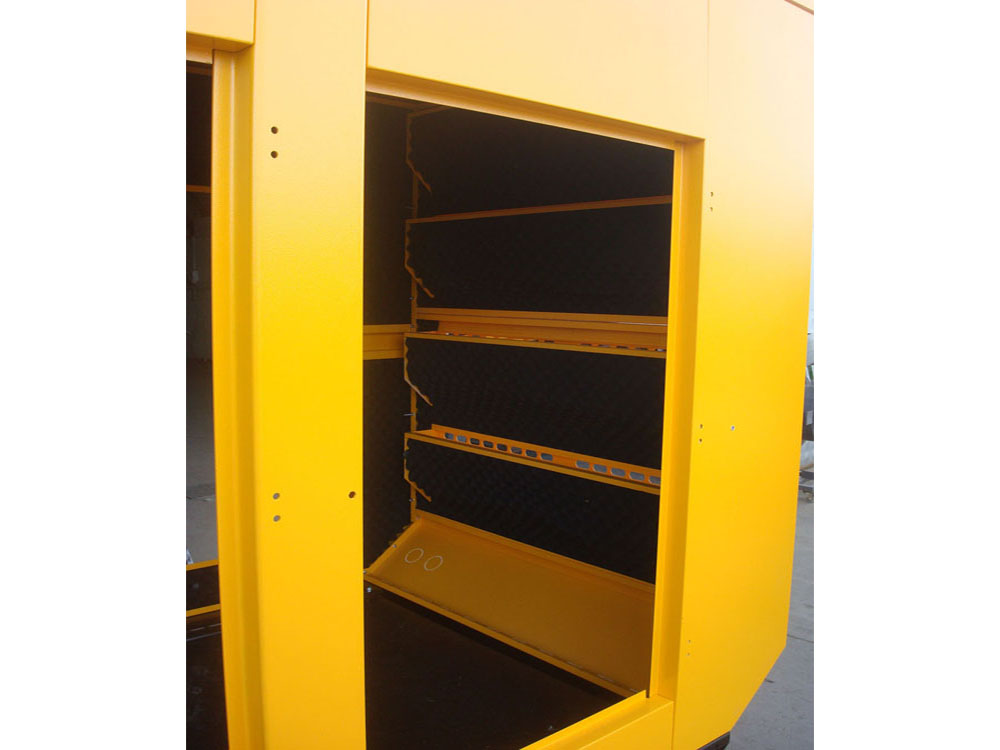

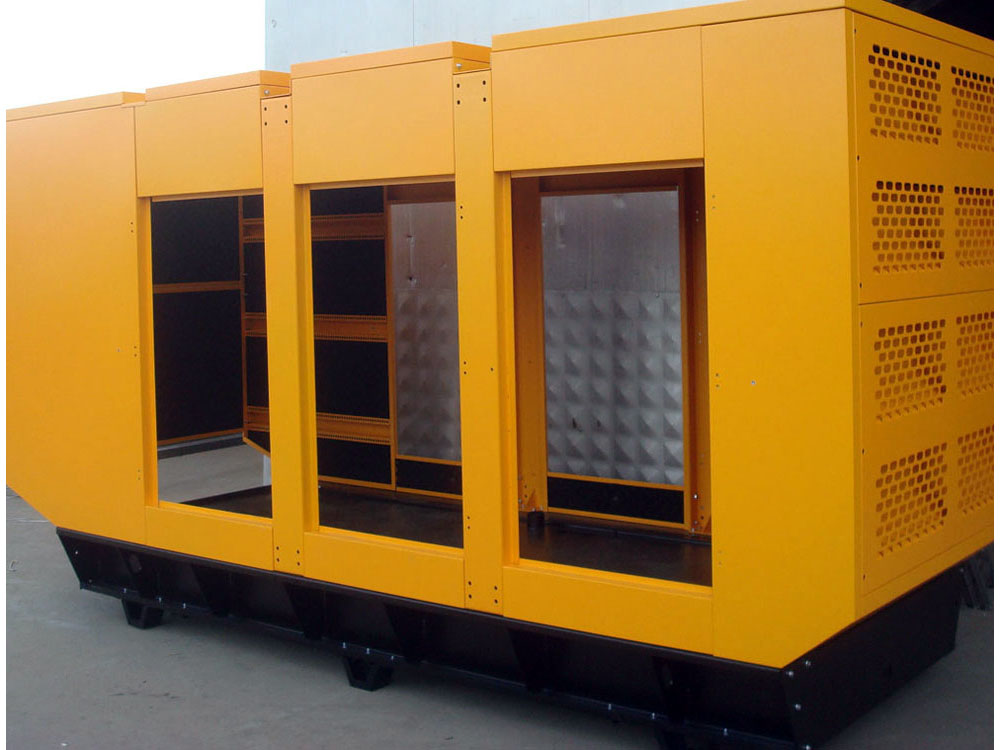

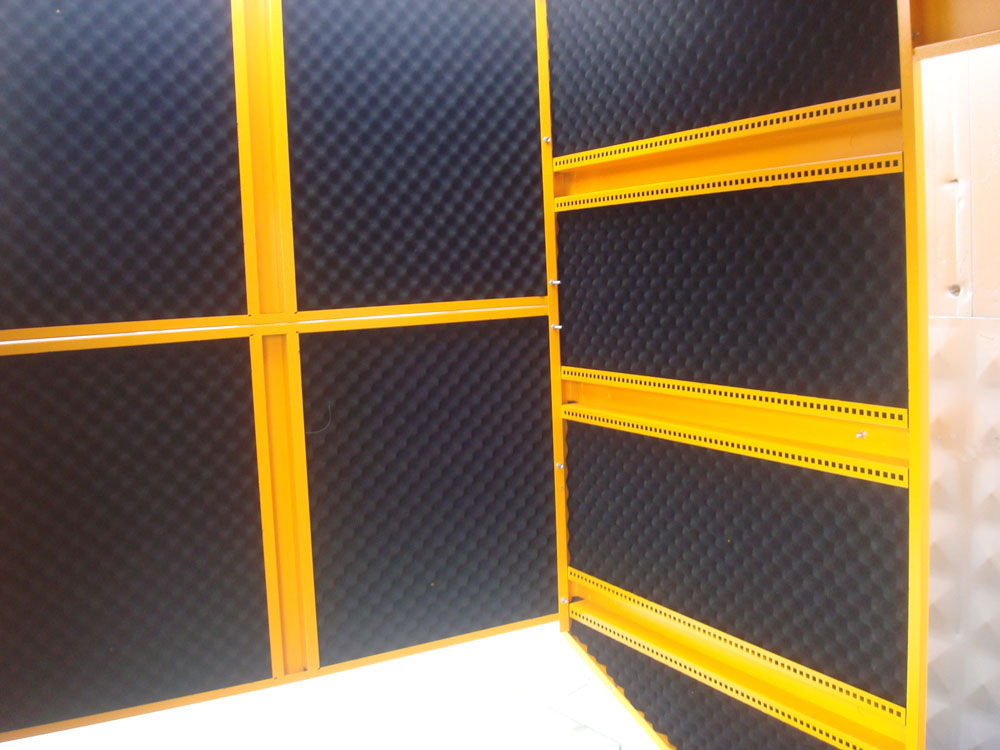

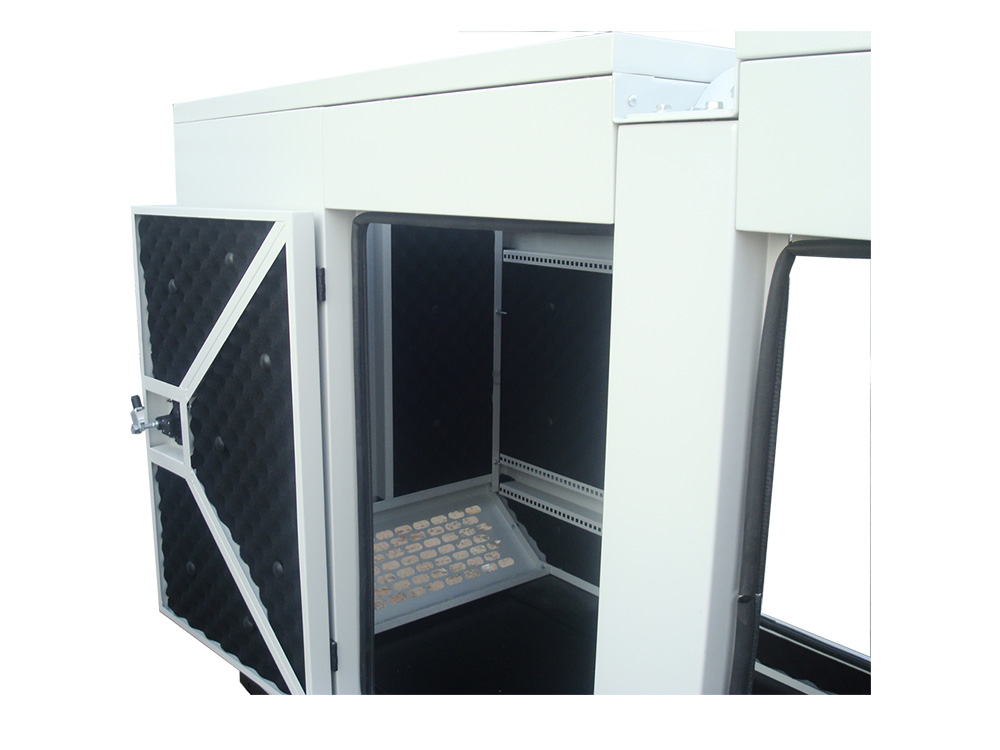

5. Standard 3mm Egg type acoustic foam is used as sound absorbing material, l 4mm flat type acoustic foam and other options are available. Acoustic foams are non-flammable, liquid and dustproof.
Super silent canopies are produced with 10 cm thick Rockwool on their walls.
Acoustic foam is applied to all interior surfaces. It reaches 65 -75dB (A) at 7 meters as standard.
6. Standard protection class IP23, Other protection classes optionally available
7. It is packaged as disassembled for easy and economical transportation. It is easily assembled.It takes up less space during storage.
8. Production with different canopy sizes between 10 KVA and 700KVA

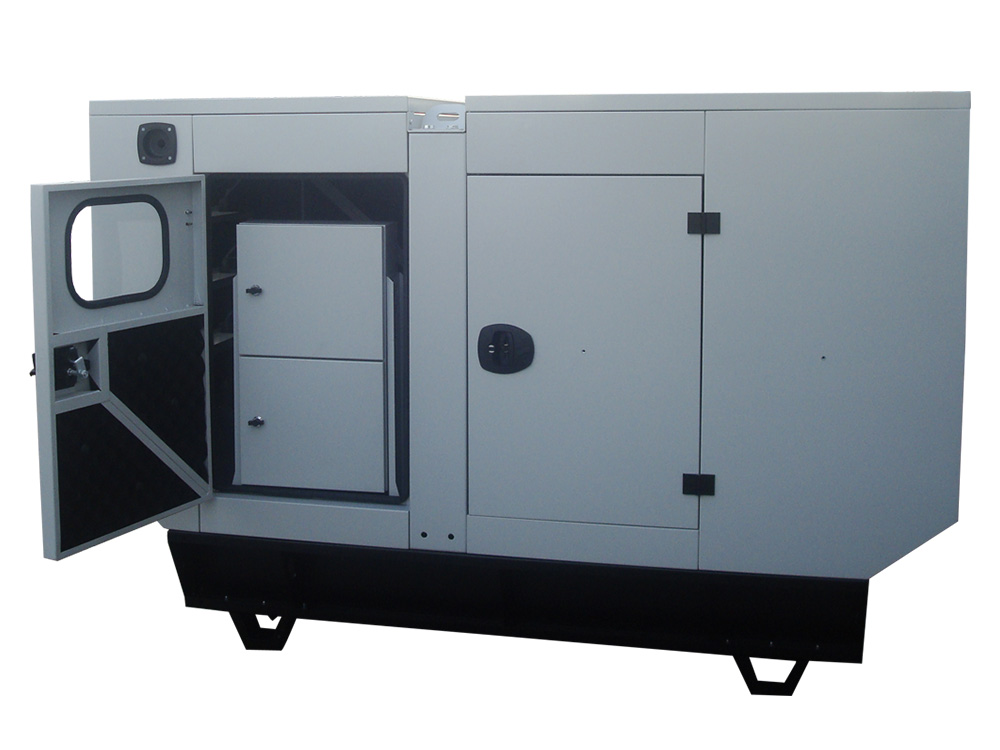

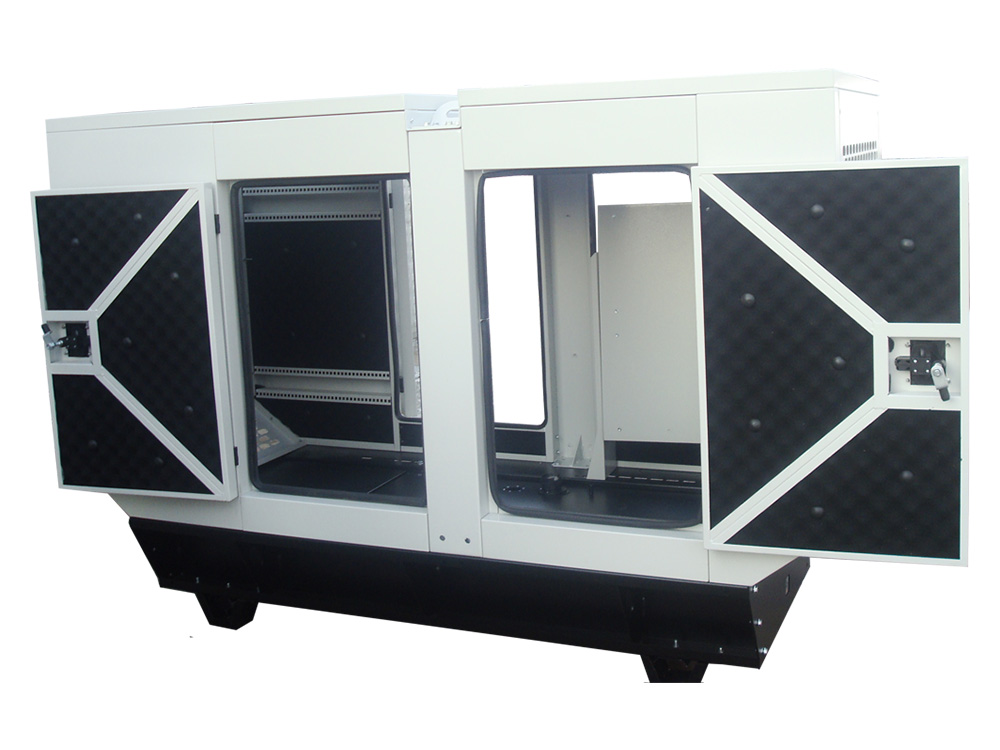

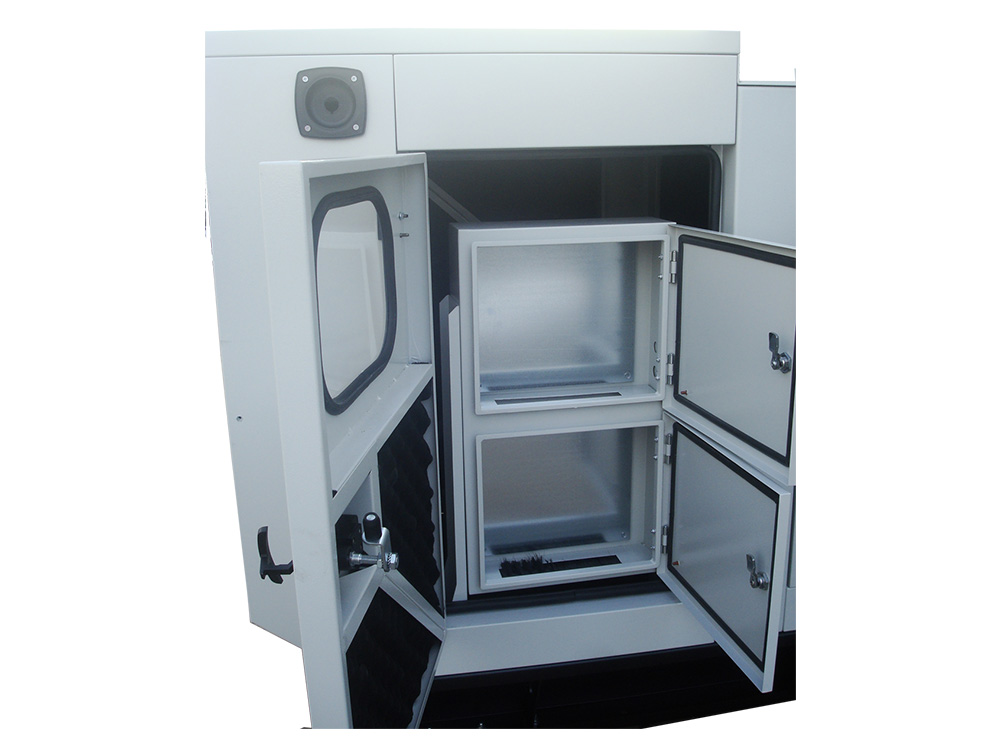

9. Our soundproof generator cabinets are produced with 4 or 6 doors depending on the size to facilitate the maintenance of the generator. Easy access to the control panel is provided.
10. We have also developed our expertise in providing customized products to meet our customers' requirements
11. We make use of quality raw material that ensures durability and efficiency for long-term use
12. Screws used in generator sets are stainless and not visible from the outside. Stainless steel hinges and locks are used on the doors of the canopies.
13. Design suitable for Stamford, leroy somer and all alternator brands, -Perkins, Mitsubishi, BAUDOUIN Cummins and all other engine brands
14. Hinges, locks, bolts and fittings are all accessible only from inside our enclosures. Thus, it provides a more aesthetic appearance and makes it difficult for unauthorized persons to access. Stronger fittings and locks are applied where security is more sensitive.
15. Flexible Adjustable Size that can be adapted to suit a variety of engines and engine configurations.



Client inform  dimention acording to engine,alternator and radiator  and prepared design of  canopy and chasis  acordingly

    GENSET CANOPY    CHASIS
ITEM QTY  DOOR GENİŞLİK                       mm DERİNLİK mm YÜKSEKLİK                        mm GENİŞLİK                       mm DERİNLİK mm YÜKSEKLİK                        mm
1 4 1900 900 1150 1500 900 250
2 4 2000 900 1300 1600 900 250
3 4 2200 900 1150 1800 900 250
4 4 2200 1000 1300 1800 1000 250
5 4 2000 1000 1250 1600 1000 250
6 4 2400 1000 1300 2000 1000 250
7 4 2550 1000 1300 2150 1000 250
8 4 2700 1100 1400 2300 1100 250
9 4 2700 1100 1500 2300 1100 250
10 4 2900 1100 1600 2500 1100 250
11 4 3100 1100 1500 2500 1100 250
12 4 3400 1200 1700 2800 1200 250
13 4 3700 1200 1700 3000 1200 250
14 6 4000 1250 1600 3400 1250 250
15 6 4200 1300 2000 3500 1300 250
16 6 4500 1400 2000 3800 1400 250
17 6 5000 1600 2200 5000 1600 250
18 6 6000 1600 2200 6000 1600 250
1. Canopy Lock
2. Hinges
3. Anti vibration  support   4 pcs   ( 0-300CM)
4. Anti vibration  support   4 pcs   ( 310-500CM)
5. Mechanical gauge
6. Fuel  filling cap
7. Radiator water  filling cap
8. Emergengy cap
9. Egzost
10. Fuel Hose
